    Bi-Direction Access Control Tripod Turnstile Gate Full Automatic Pedestrian

    Ask Lasest Price
    Brand Name : TS
    Model Number : TS-ZZ011
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 2000 sets per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Bi-Direction Access Control Tripod Turnstile Gate Full Automatic Pedestrian

    Luxious full automated slim size 2 year warranty swing turnstile barrier with marble top cover

    Introduction of swing arm barrier:


    1. intelligent route-way managing device
    2. integrates mechanism,
    3. electron, microprocessor


    Features of swing arm barrier:

    • Support bi-directional opening
    • Can integrate with access control system.
    • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
    • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
    • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
    • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
    • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
    • Gate length can be easily customized to fit site requirement.
    • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
    • Gate motor mechanism is self lock at open and close position.

    Specifications of swing arm barrier:


    DescriptionSpecification
    Power supplyAC220±10%V 50Hz/AC110±10% 60Hz
    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltageDC 24V (brush motor)
    Max flow rate20 to 25 person per minute
    Gate swing angle180 degree
    Gate opening speed1.5s
    Reset time when power on3s
    Working temperature-20°C~60°C

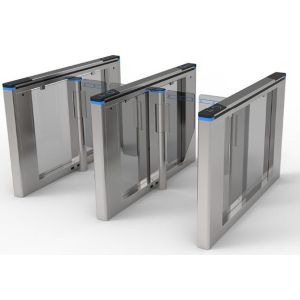

    Case of swing arm barrier:


    Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover 0


    Why choose us:


    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
