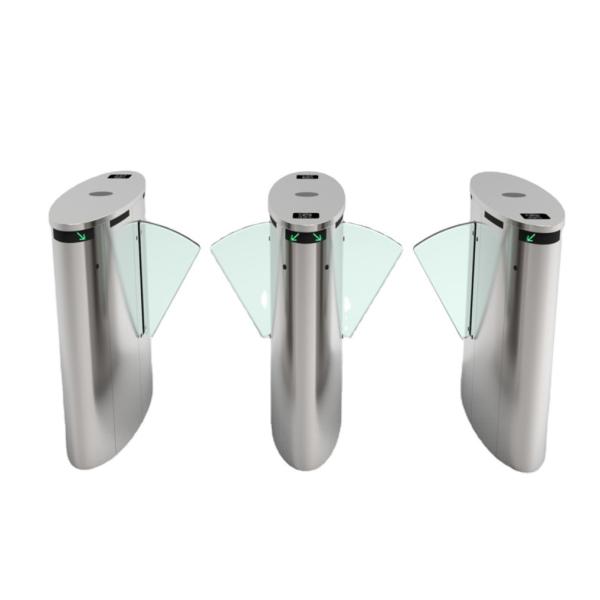

Bridge type China OEM entrance brush-less 24V DC motor flap
turnstile gate with CE certification
Advantage of Sinomatic Flap Turnstile Gate
1. Flaps open when power off, and auto-close when power on.
2. Compatible with diverse access control devices.
3. Pedestrian flow directions can be single or double directions.
4. Available for two-way traffic lights, which can prompt the
state---pass or no-entry.
Features of Flap Turnstile Gate:
1. Fault detection and alarm functions, easy to use and
maintenance.
2. The running status can be programmed and controlled with the
built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in
the reset process, motors will stop working automatically within
the prescribed time and reset again after the default delay (till
fully reset).
4. Anti-breakthrough function. The gate is locked automatically
until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within
the prescribed time (default time is 5 seconds), the system will
cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers,
bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on,
complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse
intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
Specifications of Flap Turnstile Gate:
| Item | Specification |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor voltage | DC 24V (brush motor) |
| Max flow rate | 25 to 30 person per minute |
| Flap opening / closing time | 1s |
| Reset time when power on | 3s |
| Working temperature | -20°C~60°C |
Case of Flap Turnstile Gate:
Why choose us:
1. Our Factory has 18 years OEM/ODM experiences in the line of
access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model
which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test
it before bulk order.
5. Online technical support makes it carefree to be our business
partner.
6. A variety of transportation for your choice. Sea shipment, air
cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly
welcome to visit our factory.
