    Hotel Fingerprint High Security Turnstile , Access Control IC Safety Swing Gates

    Ask Lasest Price
    Brand Name : TS
    Model Number : TS-SG012
    Delivery Time : 15 days
    Supply Ability : 1000 units per month
    • Product Details
    • Company Profile

    Hotel Fingerprint High Security Turnstile , Access Control IC Safety Swing Gates

    Electronic Pedestrian Barrier Gate / Subway Access Control Turnstile Gate Access Control Turnstile Gate

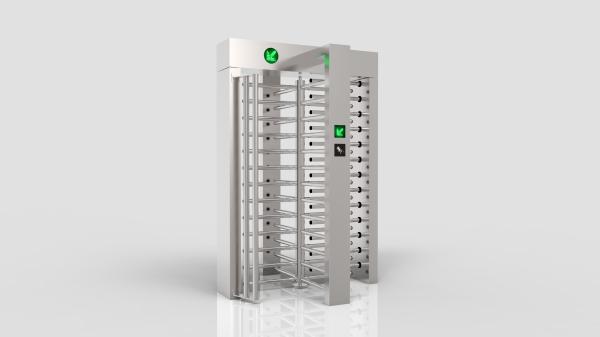

    Full height turnstiles

    Applications: office building, hotel, commercial building,company, it can compatible with many types of access control system, time attendance, fingerprint, bar code, etc.

    Functions & Features:


    1. Compatible with several control devices IC, ID, magcard, bar code


    2. Unlocking is quick and reliable.


    3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.


    4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.


    5. The centre rotor will be set free (default) or locked (optional) automatically when the power is off.


    6. Emergency-escape function: the centre rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.


    7. Counting Function of the controller, LED figure display function (optional)


    8. Memory Function attached in the controller


    9. With standard input, output interface

    Model

    Item

    WJFT601WJFT602WJFT603WJFT610WJFT611WJFT612
    Material of housing201/304 stainless steel
    Thickness of housing2.00mm
    Dimension of housing1630*1500*23001400*120023001630*1500*23002800*1803*24002150*1260*23002210*1500*2300
    Length of pole610mm470mm510mm610mm470mm610mm
    Net weight70kg250kg230kg500kg500kg600kg
    Max load-bearing pole80kg30kg80kg80kg30kg80kg
    Produce processingLaser cutting fully controlled by computer
    Driving force of pole3kg
    Power supplyAC220V±10%, AC110± 10%
    Frequency50/60HZ
    Transmission of poleDigital transmission
    Light indicatorDirection indicating
    Rotating directionSingle direction/double direction
    Time for opening0.2second
    Communication interfaceStandard RS485(distance less than 1200m)
    Input interfaceDry contact signal or +12Vlevel signal or pulse signal with width more than 100ns DC12V
    Transit speed30-40 people
    Working environmentIndoor/outdoor(shelter)
    Working temperature-10℃~+50º℃
    Relative humidity≤90%, o condensation
