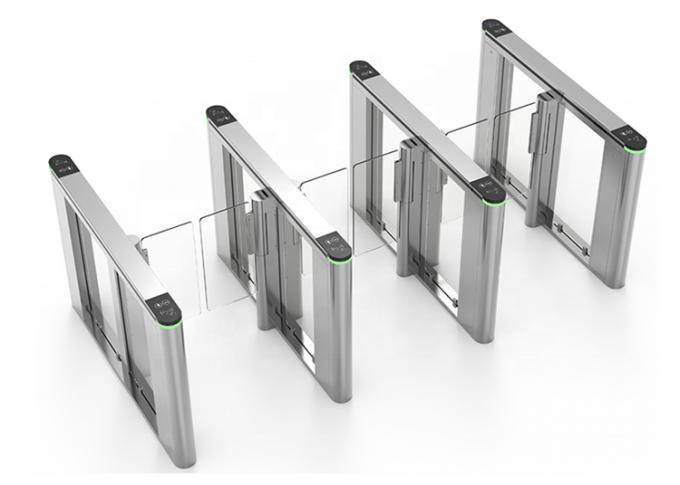

Face Recognition RFID Access Control System 900mm Passage Width
High Speed Swing Barrier
PRODUCT DESCRIPTION
The intelligent high speed gate is one of the serial products of
intelligent passage management series from
our Company. Using BLDC motor, It possesses superiority
incomparable with the traditional management mode.
The outline of the product is formed after pressing the stainless
steel plate. The shape is featured as a pleasing
appearance, a good looking, stainless and durable. The system is
provided with a standard electric interface and
is easily integrated into the product with read/write facilities. A
special control system is equipped in the product
to meet the requirement of fire control, so that the smooth passage
flow is ensured, realizing a timely diverting
of passengers.
The product is featured as stable in performance, safe and
reliable, and can be used widely in the places where
passenger flow is great and monitoring is needed such as stations,
airports, office.
PRODUCT FEATURES
1. The device adopts DC brush-less motor, which supports at least 5
million normal passages.
2. The device adopts multiple pairs of infrared detection sensors,
and adopts anti-tailing tracking control technology,
which can be passed by authorized personnel. When unauthorized
personnel enter, an audible and visual alarm will
be issued.
3. The device integrates a voice module which can customize the
voice broadcast content according to user
requirements.
4. The device uses LED to indicate the traffic direction and
display the traffic status.
5. The device has anti-shock function. When there is intrusion, the
door wing is automatically locked.
6. The equipment has self-test, self-diagnosis, automatic alarm
function, sound and light alarm function including
illegal intrusion alarm, reverse intrusion alarm, trailing alarm
etc.
7. The device has an automatic reset function. When the gate does
not pass within the specified time after opening
the door, the system will automatically cancel the user's
permission for the current pass and set the transit time.
8. The device supports flexible configuration of the access status
(controlled, free traffic, no traffic) in the inbound
and outbound directions.
9. The device supports the memory mode which enables continuous and
fast traffic.
PRODUCT SPECIFICTAIONS
Model | SN-HSG150 |
Case Material | SS304 |
Barrier Arm Material | Acrylic |
Production Process | CNC Laser Cutting |
Size | 1210*150*1060mm(Customization acceptable) |
Power input | AC100-240V,50/60HZ |
Operation voltage | DC24V, 3A, Power: 40W( Servo Motor Optional) |
Electromagentic | Duty Cycle 100% |
Passage Width | 600mm to 1000mm |
Passage direction | Single directional/Bi-directional(Optional) |
Operating time | 1S |
Throughput Rate | 30persons/minute(Normally Closed) or 40 persons/(Normally Open) |
reset Time after Power on | 3S |
MCBF | 5,000,000 Cycles |
Automatic Reset Function | Automatically locked within set time(Time Adjustable) |
LED Indcator | Yes |
Operation Humidity | 0~95%(No Freezing) |
Operation Temperature | -20℃~+60℃ |
Operation Eenvironment | Indoor,Outdoor(Shelter) |
Protection Level | IP45 |
Communication Interface | Standard RS485 interface, distance ≤1200 meters |
Input Interface | Relay switch signal or 12V electrical level signal or 12V pulse
signal of pulse width > 100ms, drive current >10mA |
Application
Intelligent high speed gate ---can be compatible with IC card, ID
card, barcode card, fingerprint reading card
recognition device used for staff, provide civilized, orderly
access methods; effectively manage the access of staff.
Can be widely used in the station, wharf subway, factories, office
building, hotel, clubs, intelligent community,
enterprises and institution that need intelligent access
management.
FAQ
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No
Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM
.
5.What's you warranty?
-------- 1 year time warranty .
